DIY LED Christmas tree

Here are two of my DIY Electronic Christmas trees. The first one was made two years ago for an office Christmas decorating contest. I decided to update it this year with a little more modern technology.

img_20141227_183742

First tree:

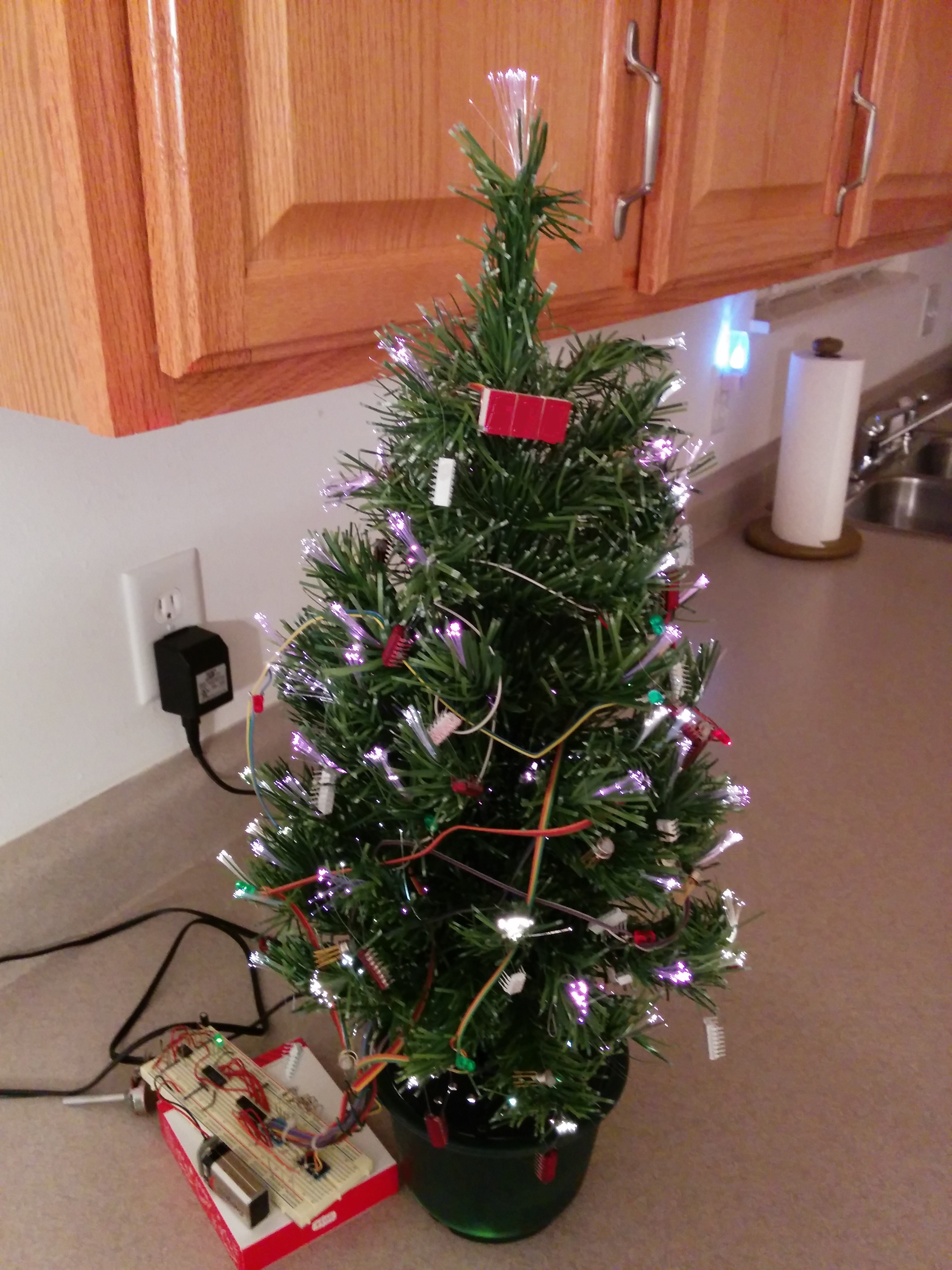

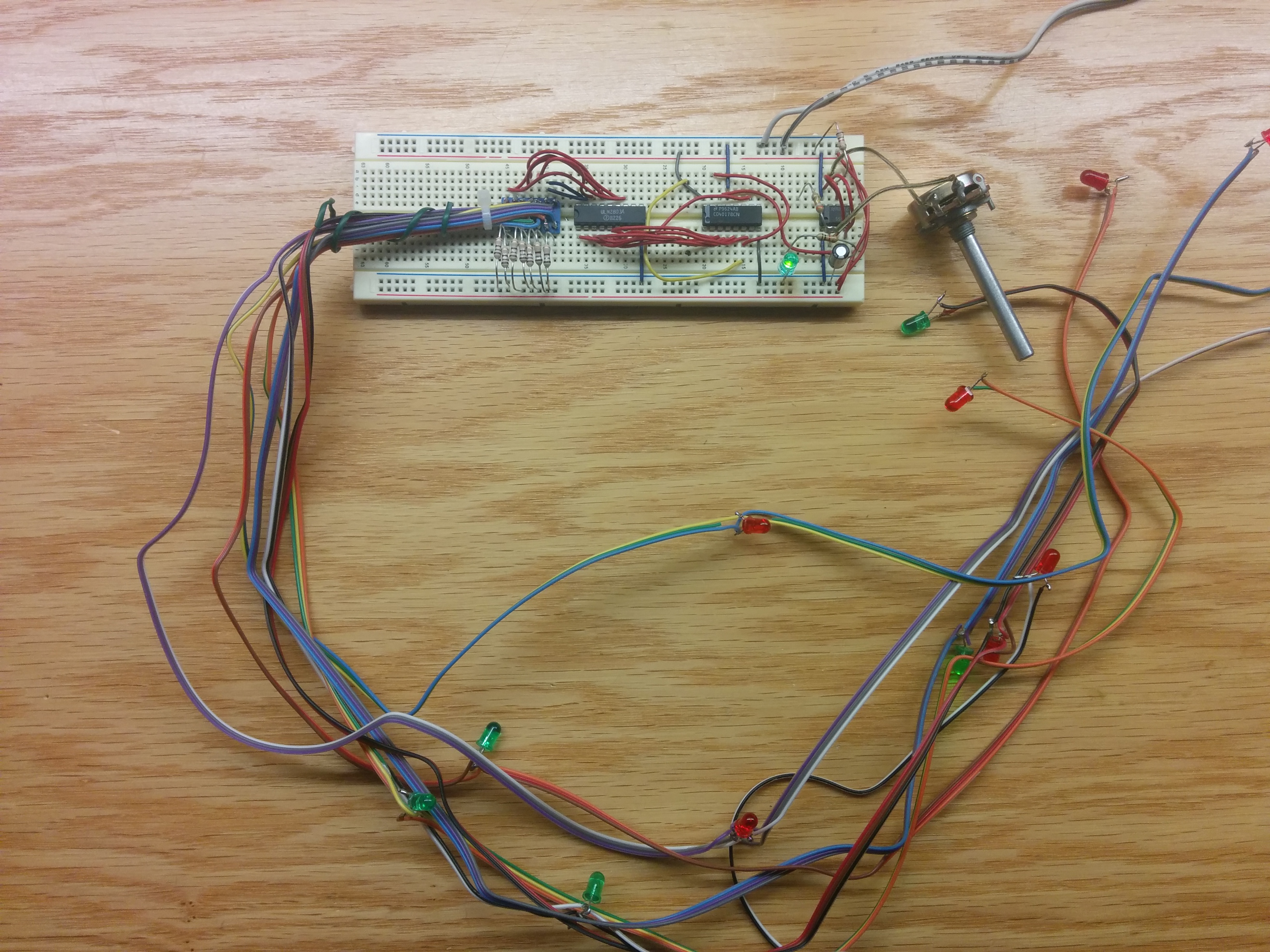

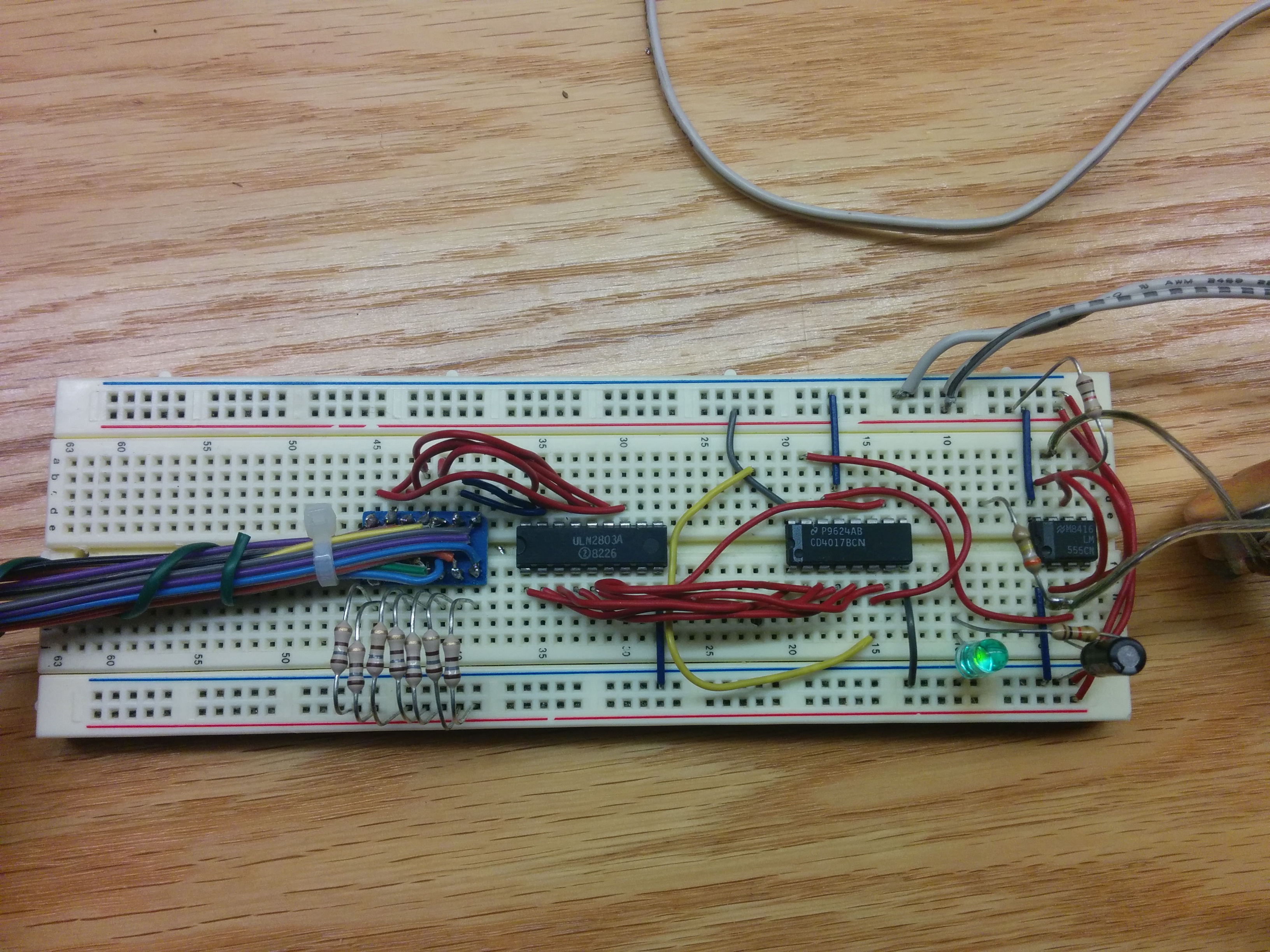

This is a fiber optic tree with a halogen light and color wheel in the base. I decided on a technology theme using electronic parts that I had on hand by making my own blinking light strands out of red and green LEDs soldered onto cut up ribbon cables. The LEDs are driven by a 555 + 4017 + 2803 IC combo circuit assembled on a breadboard. For those who are not sure what that means… The 555 is a general purpose timer IC that supplies the clock pulses. The speed is adjustable by the potentiometer knob. The 4017 IC acts as a sequencer/chaser. It has ten output pins that switch on in sequence per each clock pulse. The next chip is a ULN2803 that acts as a amplifier for the output of the 4017 to drive multiple LEDs. In this case, I am using 7 channels of outputs with two LEDs on each strand. Here is a schematic if you want to make this circuit: http://www.electroschematics.com/6170/led-chaser/

img_20161120_214746

img_20161120_215835

The ornaments on this tree are old ICs that were spray painted white and red. I am happy to report that I did win the decorating contest with this effort. I was going for an ‘electronic steampunk’ theme, which I think this captured. Charles even said that it looked ‘old school’, high praise indeed!

Updated Tree:

img_20161212_173112

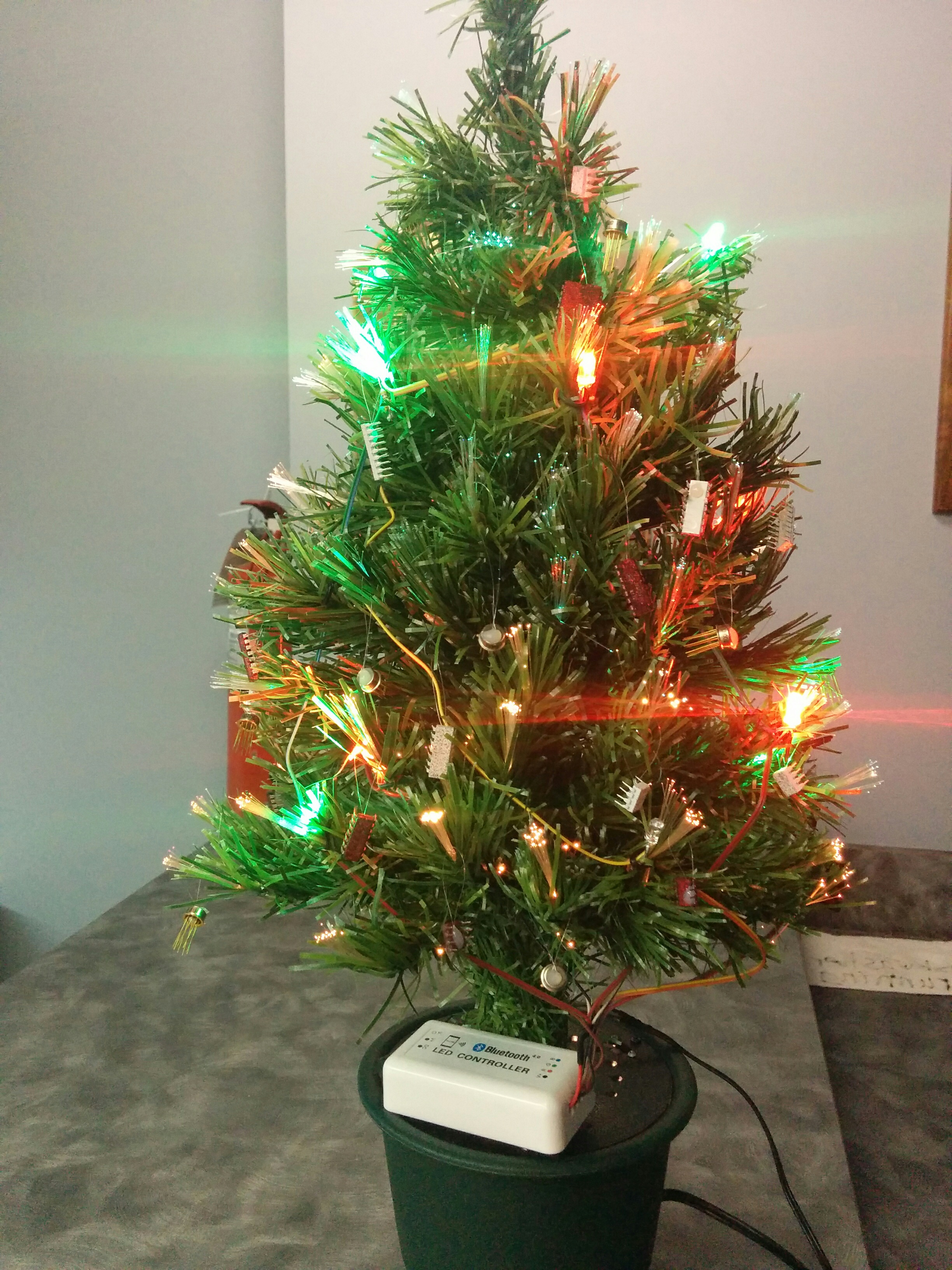

This year, I updated the original tree with a Bluetooth LED controller instead of the discreet ICs of the original version. I decided since now that it is 2016 and all of the box stores sell LED light strands and power strips with embedded Bluetooth controllers and their own ‘app for that’, my entry should reflect that technology. I thought about using a Raspberry PI and writing some PWM code in python to blink and dim the LEDs (and send tweets too!), but I decided that was a bit overkill.

img_20161120_214120

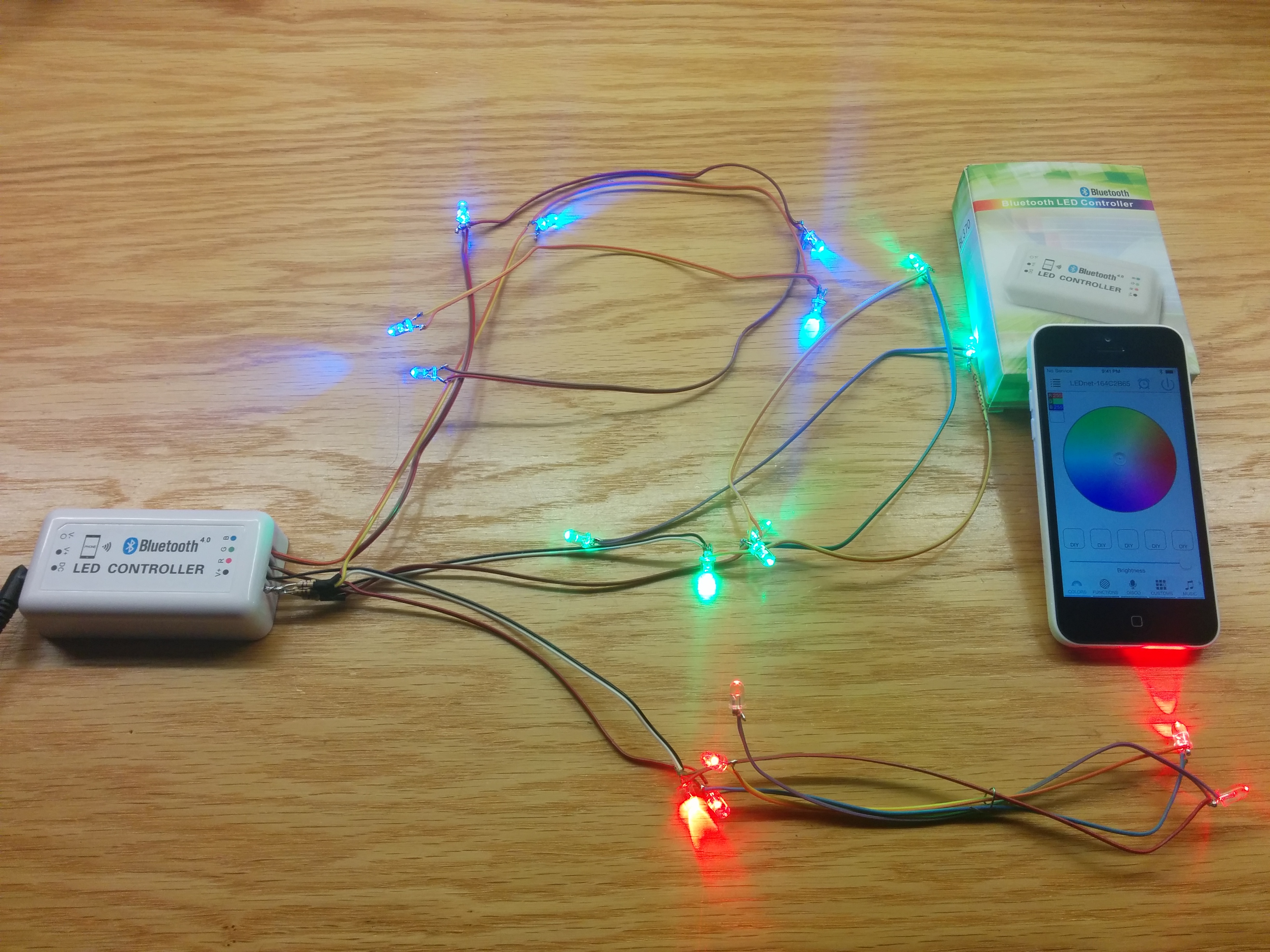

I settled instead on a standalone Bluetooth LED controller (BL 370) that I bought for $25 on A-Maze-On. The device is made to control RGB LED strips, but I thought it would do fine driving 6 each red, green, and blue LEDs for my Christmas tree (Note that there is a 470 ohm resistor inline with each LED; I re-wired them after taking the pictures). The device has its own app called ‘Magic Light BLE’ for Android and IOS. The app works pretty well with lots of options to blink the lights. The only downside is that it seems like a fairly dodgy app since now on Android it requires location permission to start. So I borrowed my Mom’s old iPhone to load the app instead. While sitting next to the tree, the phone actually complements this years theme of ‘App for that Christmas tree’. Any suggestions on what to use for ornaments?  Maybe of bunch of cut off USB connectors if I can find a ready supply?
