I saw this a while ago on one of the woodworking sites and decided that I needed to build one. It is light box with an old fashioned Edison bulb. It is a fairly simple project requiring just one piece of wood, a light socket, a dimmer and a bulb.
I made my light box out of a single piece of red oak. I purchased a 1″ thick board to have a thicker base and then planed the side pieces down to 3/4″. The dimensions are 8 3/4″ wide x 9″ tall x 5 1/2″ deep.

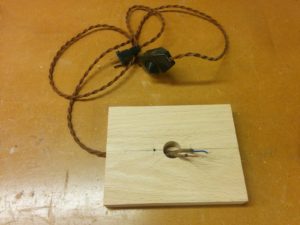

After cutting the base piece down to size, I marked the center of the board and drilled a 1″ hole approximately 3/4″ into the 1″ base. I drilled a 9/32″ hole through the side for the cord to go through. The socket was located on the base in order to pre-drill the mounting holes. I used 1″ screws in the porcelain socket that only protruded 1/4″ into the base so as not to interfere with the wire channel.

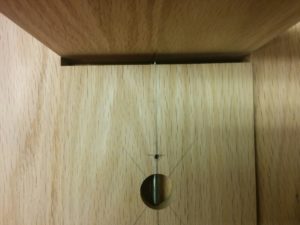

Here I slipped the 9/32″ drill bit into the hole for the wire in order to mark the side piece and continue the hole through the side. The box was then glued together using biscuits at the top.

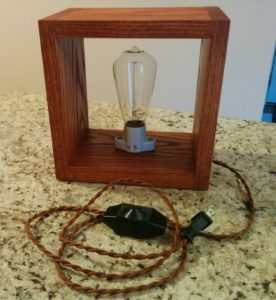

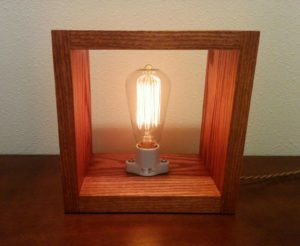

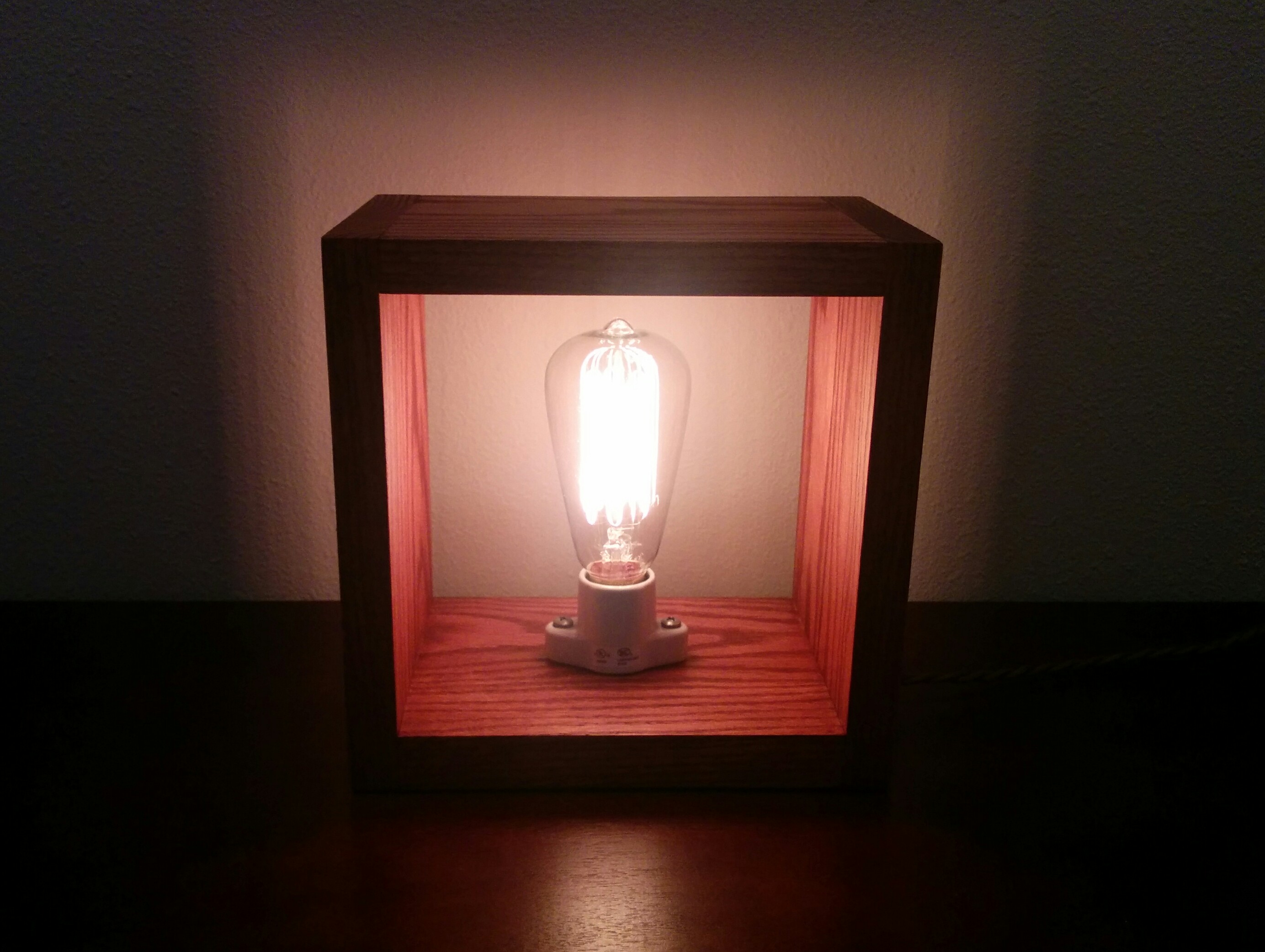

The finished piece with socket and dimmer installed. I used an inline dimmer with a woven cloth covered cord. It can be purchased here: http://a.co/cZ6Hwu2. The socket can be found here: http://r.ebay.com/giCcTj.
The finish is gun stock wood stain and one coat of spray polyurethane.
